16" POS Cash Drawer | 5 Bill / 8 Coin, RJ11/RJ12
UGX180,000
Heavy-duty 16-inch POS cash drawer with 5 bill and 8 coin compartments. RJ11/RJ12 printer-driven interface. Steel construction with 3-position lock for retail and hospitality.

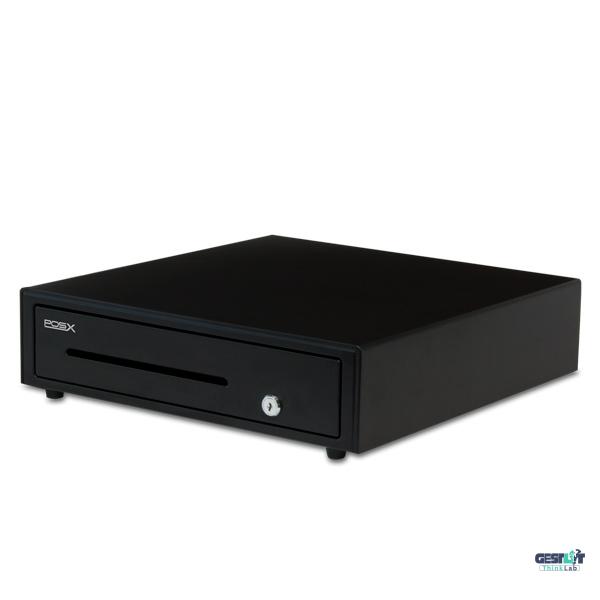

Heavy-Duty POS Cash Drawer
Keep your cash organized and secure with this professional-grade cash drawer built for busy retail environments. Featuring robust steel construction and a printer-driven interface, this drawer integrates seamlessly with your existing POS system to open automatically after each transaction.
Key Features
- Printer-Driven Operation: RJ11/RJ12 interface connects directly to your receipt printer for automatic opening after each sale - no separate power supply needed
- Spacious Cash Storage: 5 bill compartments with spring-loaded clips and 8 coin slots with removable tray for easy end-of-day counting
- Heavy-Duty Steel Construction: All-metal body with powder-coated finish resists scratches and daily wear in high-traffic environments
- 3-Position Security Lock: Lock closed, lock open, or set to auto-open mode - includes 2 keys for management access
- Ball-Bearing Slides: Smooth, quiet operation rated for over 1 million open/close cycles
- Media Slot: Drop slot for cheques, large bills, or credit card slips without opening the drawer
Technical Specifications
| Dimensions | 410mm (W) x 415mm (D) x 100mm (H) |
| Material | Cold-rolled steel with powder coat finish |
| Bill Compartments | 5 slots with spring clips |
| Coin Compartments | 8 slots (removable tray) |
| Interface | RJ11/RJ12 (printer-driven, 12V/24V) |
| Lock Type | 3-position key lock |
| Opening Method | Electric (via printer) or manual key |
| Cable Length | 1.5 metres |
| Weight | Approximately 6.5 kg |
| Colour | Black |
| Cycle Life | 1,000,000+ operations |
Compatible Printers
- Epson TM series receipt printers
- Star Micronics TSP and mC-Print series
- MUNBYN and Rongta thermal printers
- Most POS printers with RJ11/RJ12 kick connector
Ideal For
- Retail shops and supermarkets
- Restaurants and cafes
- Hotels and hospitality venues
- Pharmacies and healthcare facilities
- Any business using a POS system
Package Contents
- 1x Cash Drawer Unit
- 1x Removable Coin Tray
- 1x RJ11/RJ12 Connection Cable
- 2x Security Keys
- 1x User Manual
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
No. This drawer is printer-driven, meaning it receives power through the RJ11/RJ12 cable from your receipt printer. When your POS software sends a print command, the printer also sends a signal to open the drawer automatically.
Yes, this cash drawer is compatible with most thermal receipt printers that have an RJ11 or RJ12 cash drawer port (also called a DK or kick connector). This includes popular brands like Epson, Star Micronics, MUNBYN, and Rongta.
Yes. The drawer includes two security keys that allow you to manually open it at any time, regardless of power or printer status. This is useful for end-of-day cash counting or emergencies.
The 5 bill compartments easily accommodate UGX notes (1000, 2000, 5000, 10000, 20000, 50000) with room to spare. The 8 coin slots handle all UGX coins plus tokens if needed. The removable coin tray makes counting and restocking quick.
